Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: JONEY
  • Model Number: DVR-6804-AHD
  • Type: 4ch ahd dvr 1080p
  • Channel: 8CH AHD DVR
  • Resolution: 4ch 1080p realtime recording
  • HDD Capacity: support 1 SATA HDD
  • Video output: support VGA,HDMI video output simultaneously
  • Alarm Input: 2/1
  • DVR mode: 4CH 1080P @15fps, 4CH 720P@30fps
  • HVR mode: 2CH * 1080P AHD+ 2CH *1080P (network)/8CH*720P+8CH*720P
  • NVR Mode: 4CH *1080P/1CH*1080P+3CH 720P/20CH*960H
  • Weight: 6.5-7.5KG(without HDD)

Packaging & Delivery

Packaging Details color box
Delivery Time within 5-7working days
 4 Channel AHD DVR 4ch AHD CCTV DVR 1080p
1.standard H.264 video compression

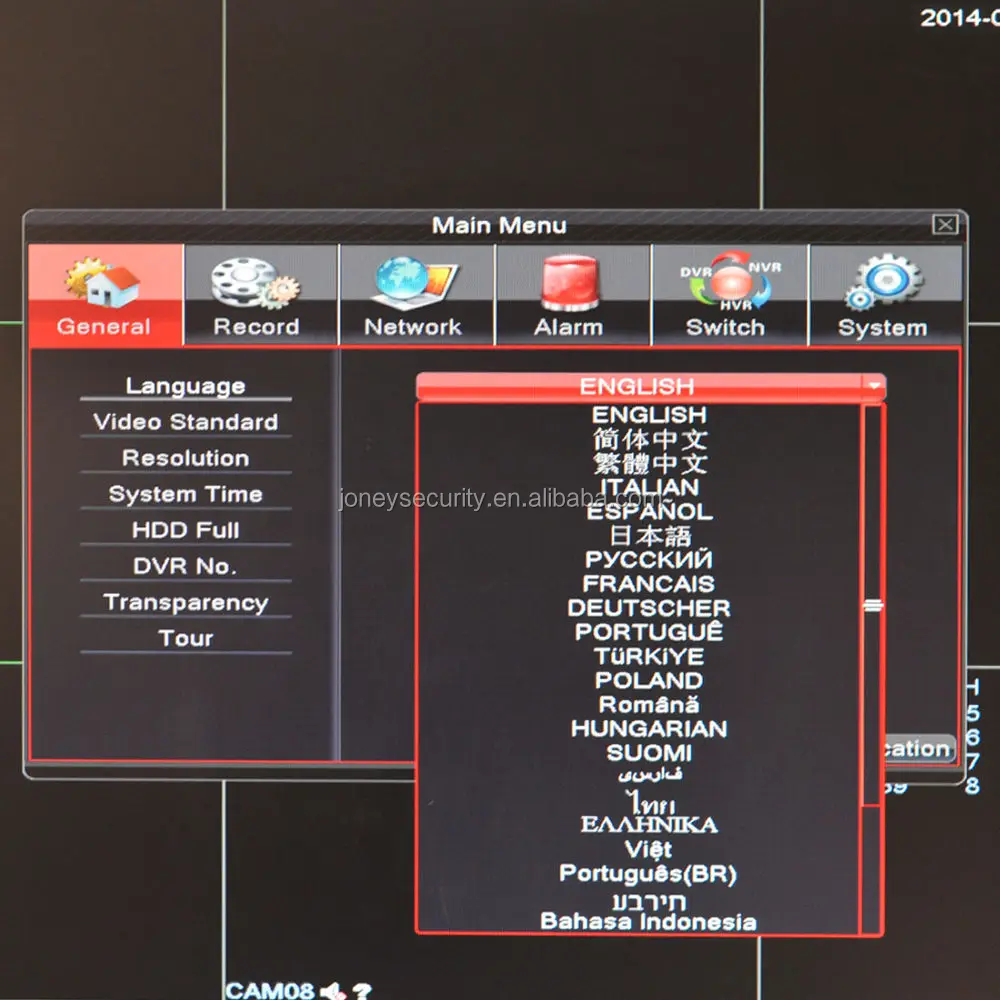

2. GUI OSD interface,USB Mouse controller,more intuitive
3. Support 4ch 10800P realtime recording resolution
4. network remote view effects
5. Support Network function:one IE browser centralized monitoring and CMS Software for multiple DVR
6. Support DHCP,DDNS,PPPoE and NTP network service
7. Support Mobile phone remote view by Android,Iphone
8. port High-Definition VGA/HDMI output
9. Support alarm triggered recording will send alerts matter
10. Support super cloud service ( specialized website for super cloud service: http://p2p.ivs168.com), one step to do remote control easily & conveniently without any complicated setting.
11. System auto recovery to power after power reconnected,and return to the pre-power-down state





Title

4channel security AHD DVR

Video Compression

H.264

Video System

NTSC / PAL

GUI OSD

YES

Video Input

4CH BNC input(composite video signal 1Vp-p 75Ω BNC)

Video Output

1CH VGA/1CH HDMI/1CH BNC

Audio Input/Output

4CH audio input,1CH audio output(RCA)

 DVR Mode

 4CH AHD 1080P@15FPS /4CH AHD 720P Real time

 HVR Mode

 2CH * 1080P AHD+ 2CH *1080P (network)4CH*720P+4CH*720P

 NVR Mode

 4CH *1080P/1CH*1080P+4CH 720P/20CH*960H

Image Quality Setting

Supper Best,Well,Good,Medium,Normal and Bad

Hard Disk Storage

Support 1 SATA HDD

Alarm Input/Output

2/1

Recording Mode

Manual/Timer/Motion/Alarm

PlaybackMode




Backup Device

USB flash drive,USB hard disk and network backup

Pre-alarmRecording

Recording for 10 seconds before alarming

NetworkProtocol

TCP/IP,PPPOE,DDNS and NTP

Ethernet remote view

Support remote surveillance up to 10 users simultaneously

CMS software

YES

MobilephoneView

YES

Electroniczoom

YES

VGA Interface

YES

Log record function

YES

ImageTour

YES

IR Remote control

YES

Video Loss Detection

YES

Video Adjustable

Hue /Saturation /Contrast /Brightness adjust

PTZ Control

YES

USB Mouse

YES

Power Source

12V/2A

Key Lock(Password

YES

Power-down recovery

YES

Size(mm)

260(L) x 44(H) x 221(W)
